Description

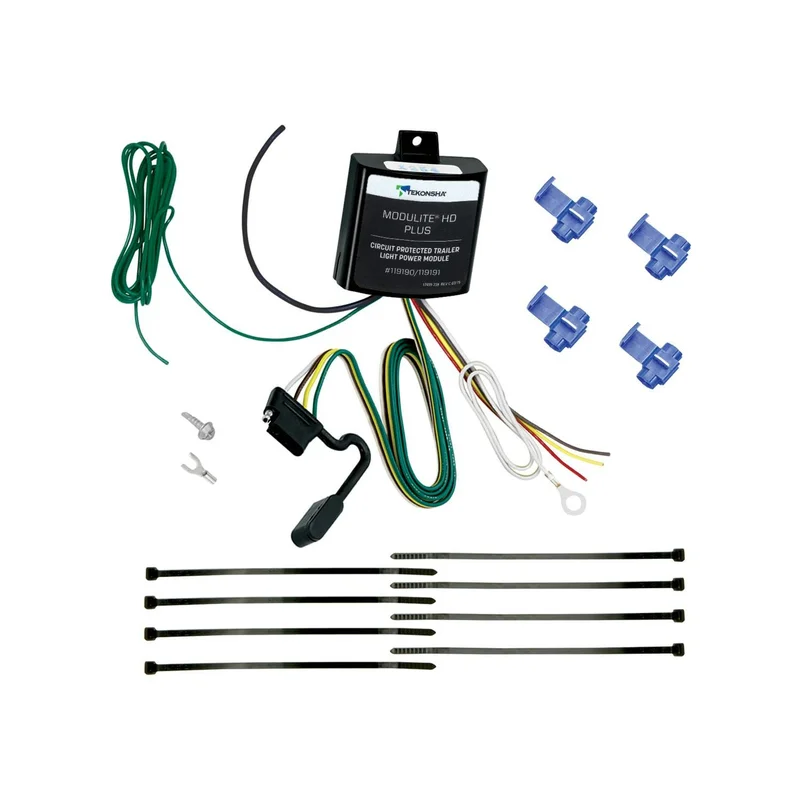

ModuLite HD Protector Trailer Light Power Module; w/Integrated Circuit And Overload Protection; 50 pack; The unit is rated for up to 4.2 amps for Turns/Stops circuits and 7.5 amps for the Taillight circuitUniversal ModuLite designed to be used on most vehicles plus the hard to wire vehiclesDraws power directly from the vehicle battery and uses less than 5Ma of the vehicle circuit for sensing to turn the trailer functions on and offWill work with either LED/Incandescent bulbs (vehicle & trailer)Has integrated re-settable Short Circuit and Overload protection, to safeguard itself and the tow vehicle from shorts and installation wiring mishapsDesigned not to send feedback through the vehicle circuitsThe trailer brakes will override the hazard lamps when the brake is activatedAdvanced circuitry works in all standard applications as well as vehicles with ST and STT pulse width modulation (PWM) systemsInterprets/decodes multiplex signal inputs (i.e. Audi, BMW, Mercedes and VW)Will not work with vehicles with low-side switchCan be used on a 2 wire or 3 wire systemAll solid-state components in potted encapsulationIncludes integrated protective cover
- ModuLite HD Protector Trailer Light Power Module
Information:
ModuLite HD Protector Trailer Light Power Module
