Description
Take charge of your LS engine with Terminator X! Say no to a salvage yard ECU with a clunky tuning interface when you can enjoy complete control of your engine, self-learning fuel strategies, and the race-proven technology of Holley EFI—all at an affordable price! Terminator X boasts real-time fuel learning, high-impedance injector drivers, an integrated 1bar MAP sensor, and 4 programmable inputs and outputs. These versatile inputs and outputs cater to electric fans, boost control solenoids, progressive nitrous control, and more.
Terminator X comes fully loaded with base maps for common LS engine combinations, facilitating a swift transition from the garage to the road/track. Please note that these Terminator X kits include a USB/CAN tuning cable instead of the 3.5″ Handheld LCD, necessitating the use of the free Terminator X Software for initial setup. The Terminator X Software offers multiple base calibrations for either naturally aspirated or boosted engines. Additionally, Holley EFI’s user-friendly software suite allows full laptop access for advanced users. Whether you’re crafting a budget-friendly beater or a boosted race car, Terminator X delivers the features and technology you crave at a price that won’t break the bank!
Features:
- Designed for GM LS Engines with 58x Crank, 4x Cam – and EV6 Injectors.
- Real-time fuel map learning, eliminating guesswork in tuning your base fuel table.
- High-impedance injector drivers safely power most Stock LS injectors and Holley EFI Injectors (Injector support chart provided in the instructions; will not control Low Impedance Injectors).
- All Terminator X systems utilize the Bosch LSU 4.9 wideband to relay AFR information to the ECU for accurate reading and precise tuning control.
- MAP Sensor vacuum hose adapters (1/8th – ¼ and 3/16ths).
- 4 Inputs – 12v, Ground, 5v, and Frequency, for additional pressure sensors, or activation triggers for nitrous activation, or a trans brake.
- 4 Outputs – Ground, PWM – , for accessories such as fans, boost control, nitrous control, IAC Kit, and More.
- Boost Control – Boost vs Time, Boost vs Gear, Boost vs RPM, Boost vs Speed, Boost Safeties.
- Nitrous Control – Single Channel of Wet or Dry, Progressive or Non-Progressive, Rich/Lean Safeties, and target Closed Loop AFR.
- On-Board Diagnostic LEDs for: ECU Power – Engine Run – Wideband Status – TPS Calibration – Crank Signal –Cam Signal. Allow you to identify any Critical engine issues at a glance.
- Advanced Tables – 4x 1D Tables, 1x 1D per Gear Table, 4x 2D Tables, 1x 2D per Gear Table, adjustable through included 3.5” f.
- Includes CAN/USB tuning cable allowing you to configure your ECU and Tune the engine in real-time.
- The compact ECU size enables versatile mounting. Remember, diagnostic LEDs must face up!
- Plug and play compatible with more Holley EFI accessories such as analog-style gauges, shift lights, various modules, and coming soon, 12.3″ digital dash support!
- Free EFI Tuning Software for complete control of your Terminator X power plant.

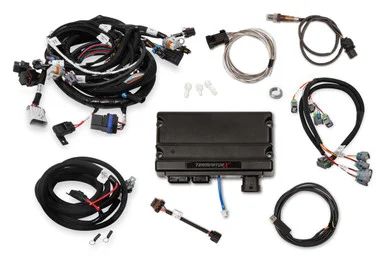

- Includes: 58x/4x LS Engine Main Harness – EV6 Injector Harness – Terminator X ECU – ECU Main Power Harness – Bosch LSU 4.9 Wideband Oxygen Sensor – Input/Output Harness – and assorted vacuum adapters.
