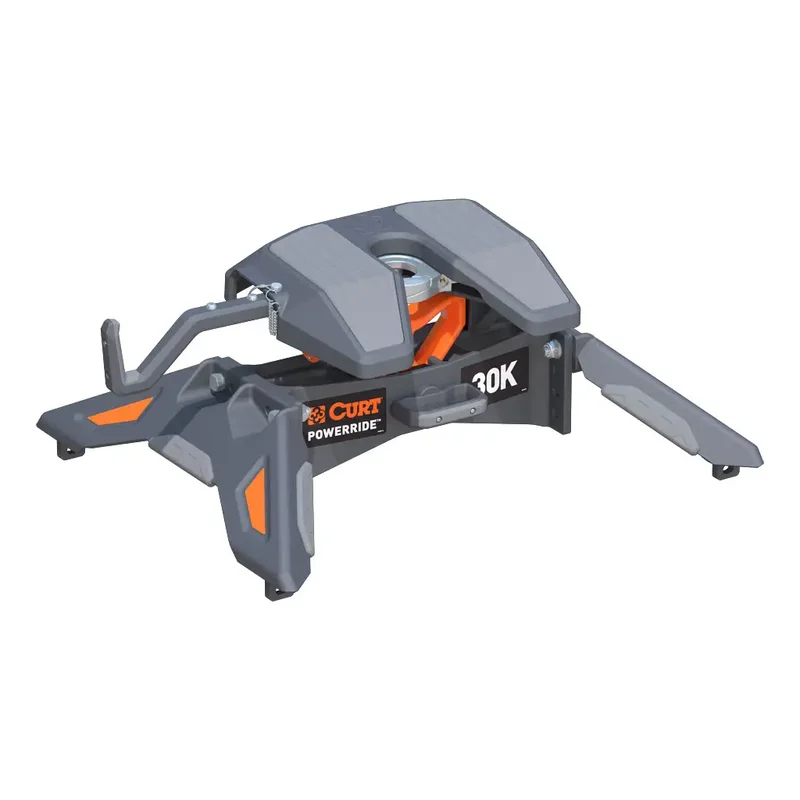

CURT 16320 PowerRide 30K 5th Wheel Hitch

Description

CURT 16320 PowerRide 30K 5th Wheel Hitch, 30,000 lbs The CURT PowerRide 30K 5th wheel hitch equips your pickup truck with a profession-grade solution for 5th wheel towing. It features a 30,000-pound, fully tested rating, a cast head with multi-directional tilt, an easy-to-use self-resetting handle, enhanced portability and no welding or fabricating required for installation. This CURT 5th wheel hitch offers exceptional towing power with its 30K gross trailer weight rating and 7,500-pound vertical load limit. It is constructed with a cast steel main body for dependable strength, and it is thoroughly tested to SAE J2638 specs for safety. It’s ideal for towing the largest RV trailers, camper motorhomes and other 5th wheel trailers. The PowerRide 5th wheel trailer hitch also features a cast yoke head that tilts in multiple directions — not just forward and backward — to promote a smooth ride. PowerRide is very easy to operate. It is engineered with a self-resetting handle, a simple mechanism that resets the jaws to the ready-to-couple position after uncoupling, saving you an extra step in the hookup process. The handle is easy to reach and operate from the side of the truck, and the hitch is also equipped with a three-position coupling indicator to further streamline the process. For installation and removal, PowerRide is unique with a one-pin head removal system. The central pin can be removed as needed, breaking the hitch down into smaller, easier-to-lift pieces. Strategically placed grips also offer a comfortable handhold. The CURT PowerRide 5th wheel hitch installs without any welding or fabricating required. It easily drops into any industry-standard 5th wheel rails. This kit comes with the hitch head and legs. Rails and brackets must be purchased separately.

• Patented interlocking jaws for full kingpin contact and coupling security
• Fast, one-pin head removal makes moving easy with smaller, lighter pieces
• Strategic grip points for ergonomic moving and handling
• Tough, professional-grade capacity and enhanced functionality
• Premium, textured, dark grey teridium finish for lasting rust resistance
• 4″ height adjustment for greater versatility versus 3″ options
• No welding or fabrication required for installation
• Ergonomic, self-resetting handle for easier use from the side of the truck bed
• Multi-directional, cast yoke head for a smooth ride and less strain on the truck
• Constructed with a cast steel main body for dependable strength
• Tested and rated to 30,000 lbs. GTW / 7,500 lbs. vertical load per SAE J2638
• Integrated wear plates for smooth operation, extended longevity and no grease

Information:

Tested and rated to 30,000 lbs. GTW / 7,500 lbs. vertical load per SAE J2638

Application Summary:
